Complete Equipment for Fiberglass Pipe(or mortar) Line
Complete Equipment for Fiberglass Pipe(or mortar) Line
Equipment Specifications
| Parameter | Technical Specifications |
|---|---|
| Pipe Diameter | 50–200 mm | 250–2500 mm | 2600–4000 mm |
| Pipe Length | 12000 mm (customizable) |
| Pipe Pressure | Max. 5 Mpa |
| Applicable Standard | GB/T 21238 |
| Control Program | Digital servo |
| Control Mode | Automatic / Semi-automatic / Manual |
| Winding Angle | 30° to 90° |
| Yarn Speed | Max. 120 m/min |
| Control Accuracy | ±0.2 mm |
| Connection Methods | Bell and Spigot · Locked Key · Tapered Bell and Spigot · Plain End Butt |

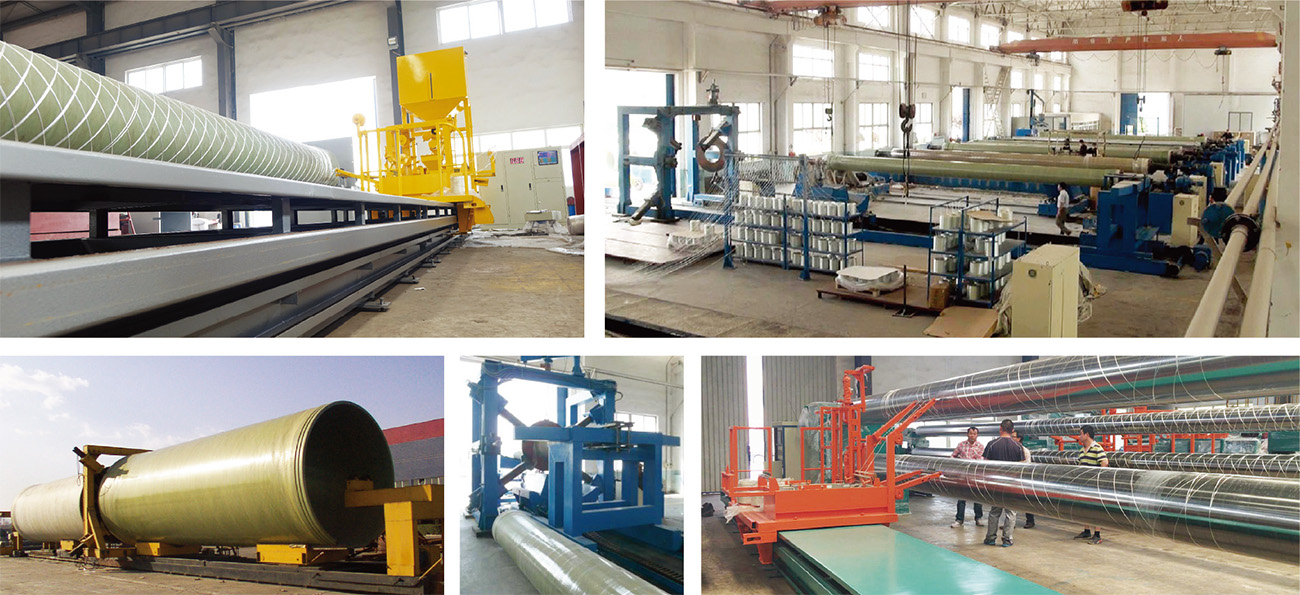

Linear Test
Winding unit
FRP pipe
Main components of the equipment
- Feeding Equipment
- Liner Machine
- Winding Machine
- Curing Machine
- Cutting and Grinding Equipment
- Demolding Machine
- Hydrostatic Tester
- Mandrels and Pipe Molds
Main Product Applications
- Urban Water Supply and Drainage
- Seawater Desalination Pipelines
- Trenchless Pipe Jacking
- Waste Gas Chimneys and Ventilation Ducts
